SMT patch processing knowledge

SMT factories play an important role in the electronic processing industry and are indispensable for the precision and miniaturization of electronic products. Piece-processed electronic components also have many advantages over traditional plug-in components. Next, Shenzhen PCBA processing manufacturer kingford will introduce the SMT patch processing knowledge.

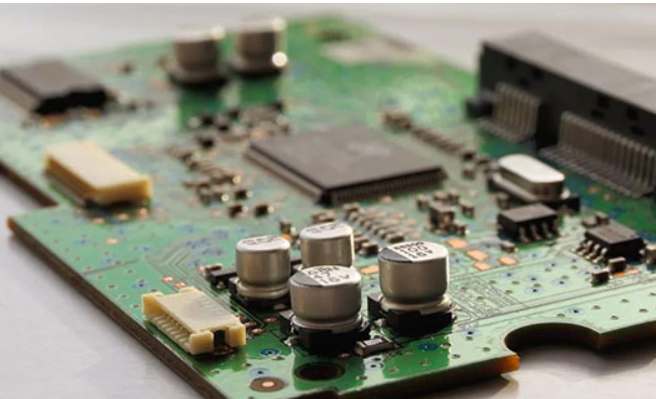

PCBA  board

SMT patch processing knowledge

1. Commonly used Mark shapes are: square, circle, "ten" shape, swastika shape, diamond shape, triangle;

2. In the preheating area and cooling area of SMT processing, due to the incorrect setting of Reflow Profile, the parts will crack slightly;

3. When the patch is processed, uneven heating at both ends of the parts is easy to cause: deviation, air welding, stone tablet;

4. Tools for repairing patch components include: electric soldering iron, hot air table, tin gun, tweezers;

5. QC testing in PCBA processing plant is divided into: IQC, IPQC, FQC and OQC;

6. High speed SMT machine can mount resistance, capacitor, IC and transistor;

7. Characteristics of static electricity: all are small current and greatly affected by humidity;

8. The Cycle time of high-speed SMT machine and ordinary SMT machine should be balanced as far as possible;

9. Quality is defined by doing it right the first time;

10. The SMT machine should attach small components first, and then large components;

11. BIOS is a basic Input/Output System, which is called Base Input/Output System.

12. According to guide | foot patch components are divided into LEAD and LEADLESS two;

13. There are three basic types of common active placement machine: continuous placement type, continuous placement type and multi-transfer placement machine;

14. In SMT processing, production can be performed without LOADER;

15. The process of SMT processing is plate feeding machine - solder paste printer - high SMT machine - reflow welding - plate receiving machine;

16. When the humidity sensitive parts are opened, the color displayed in the humidity card circle is blue, and the parts can be used.
